Hydraulic earth auger systems configured for excavators, skid steer loaders and telehandlers—matched to the carrier, hydraulic flow, ground conditions and drilling task.
Carrier-matched configuration
Auger and extension options
Technical selection support
Model rangeREA1000–REA4500
Carrier weight0.75–5 tonnes
Working oil flow15–76 L/min
Torque range189–4499 N·m
Complete drilling solution

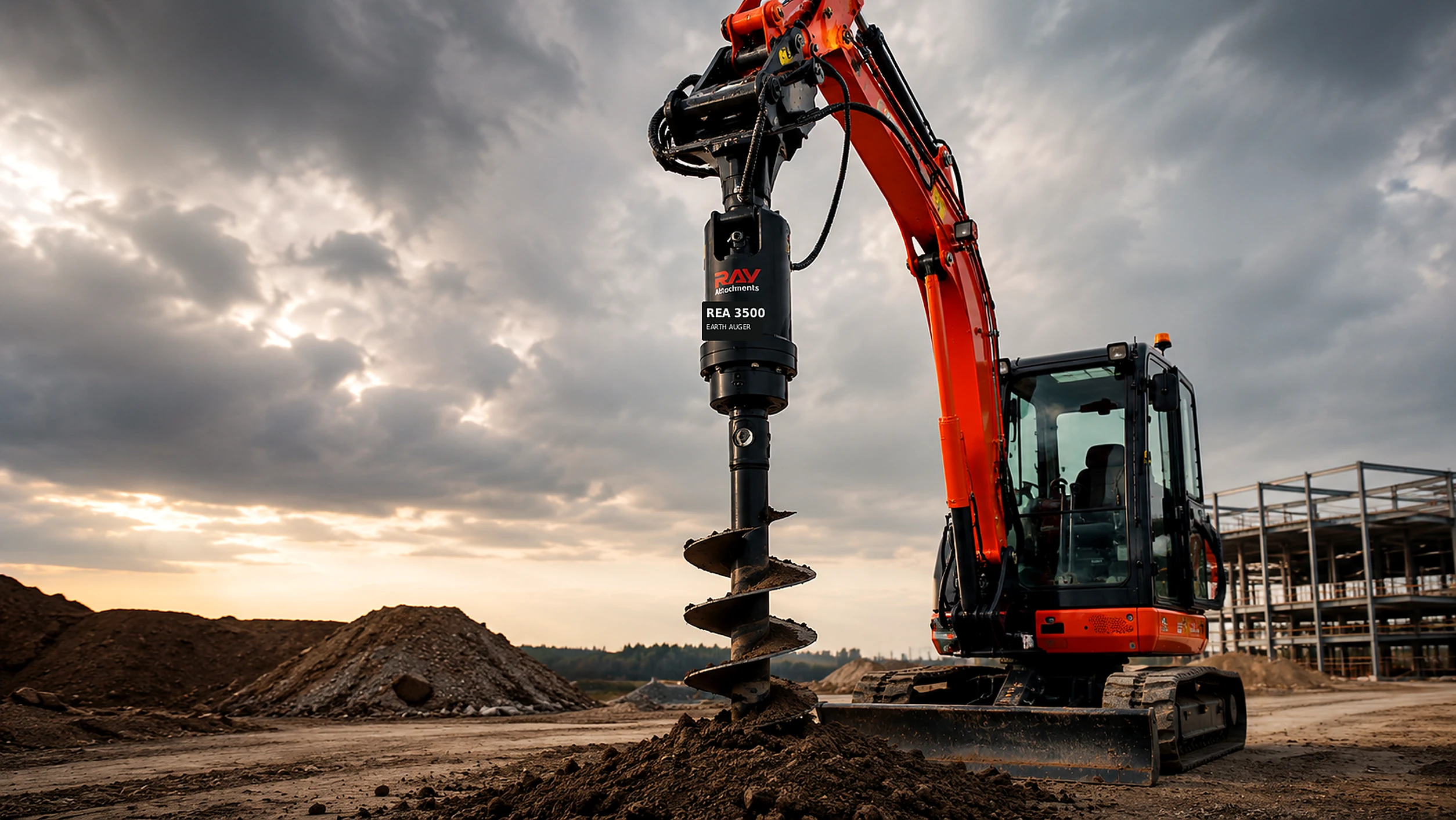

Designed around the carrier, the ground and the drilling result.
RAY earth auger systems combine the hydraulic drive head, machine-specific mounting interface, auger and optional extensions into one matched attachment package.

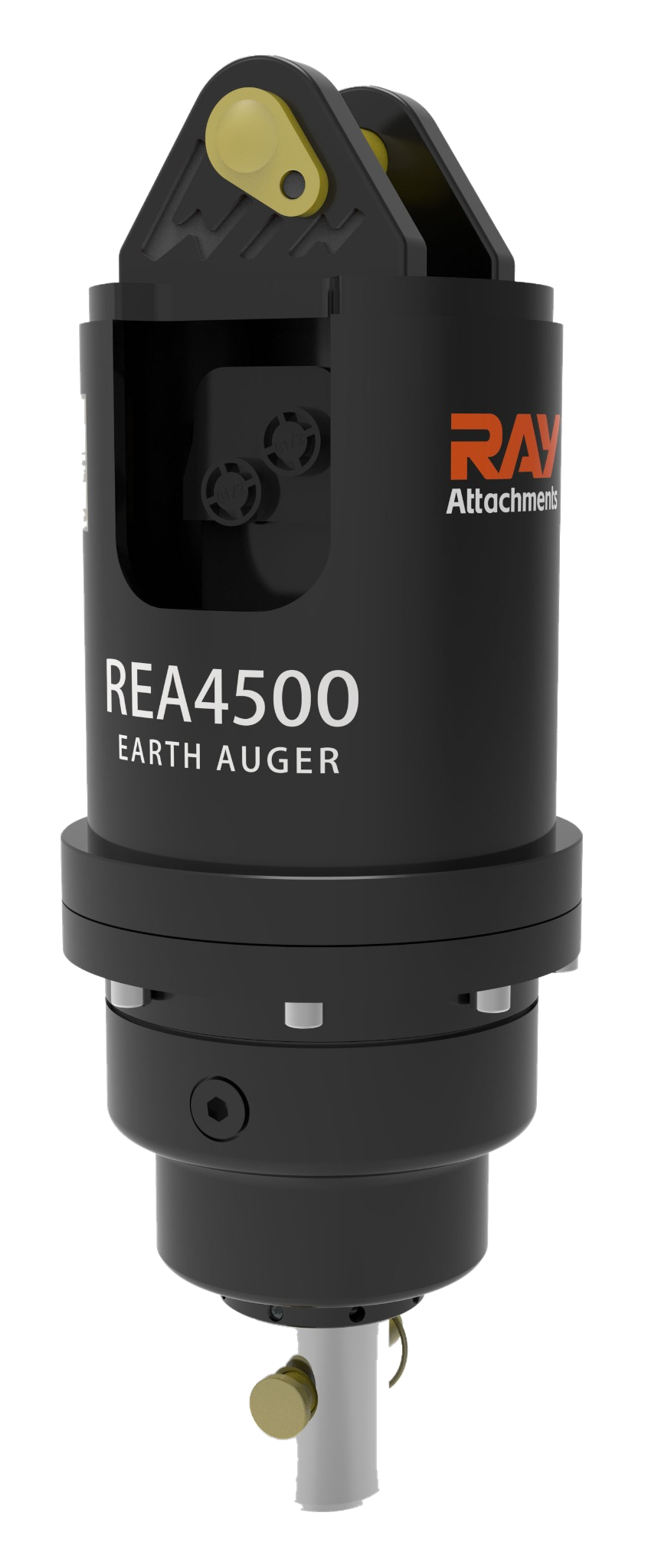

Reference drive unitREA4500

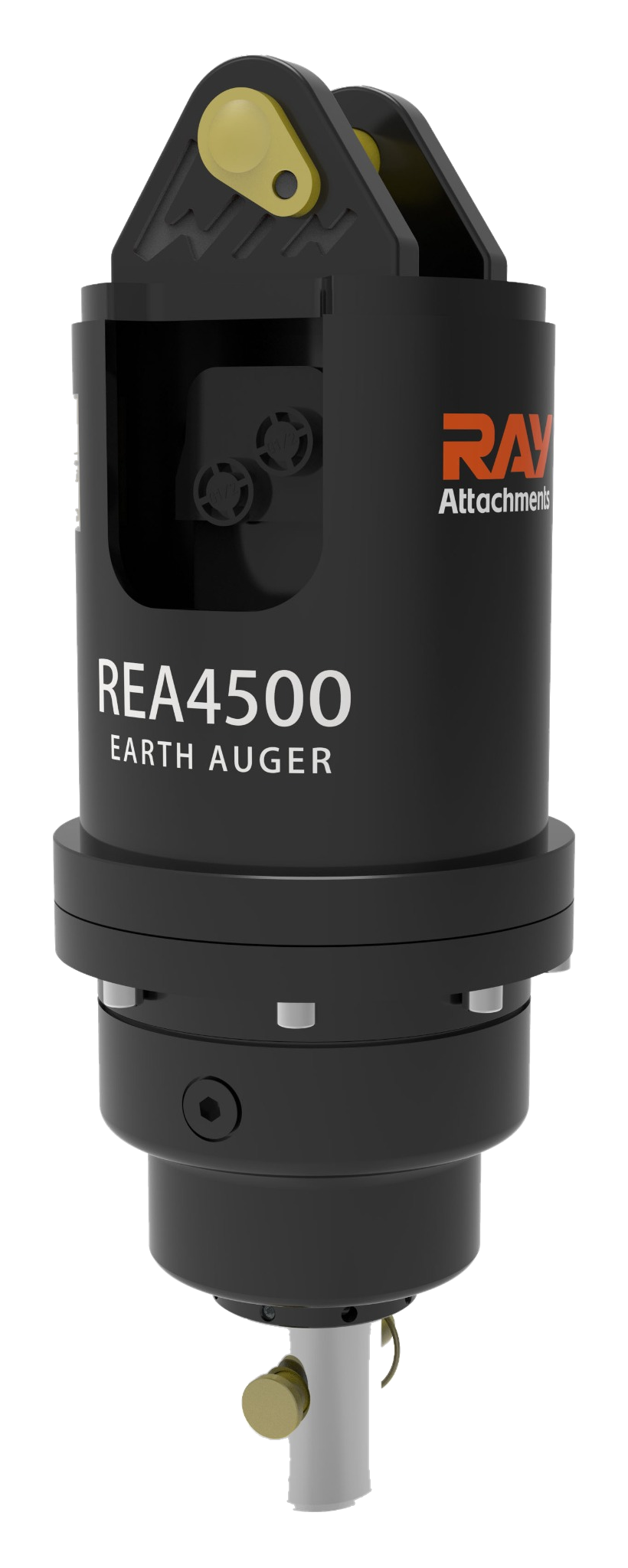

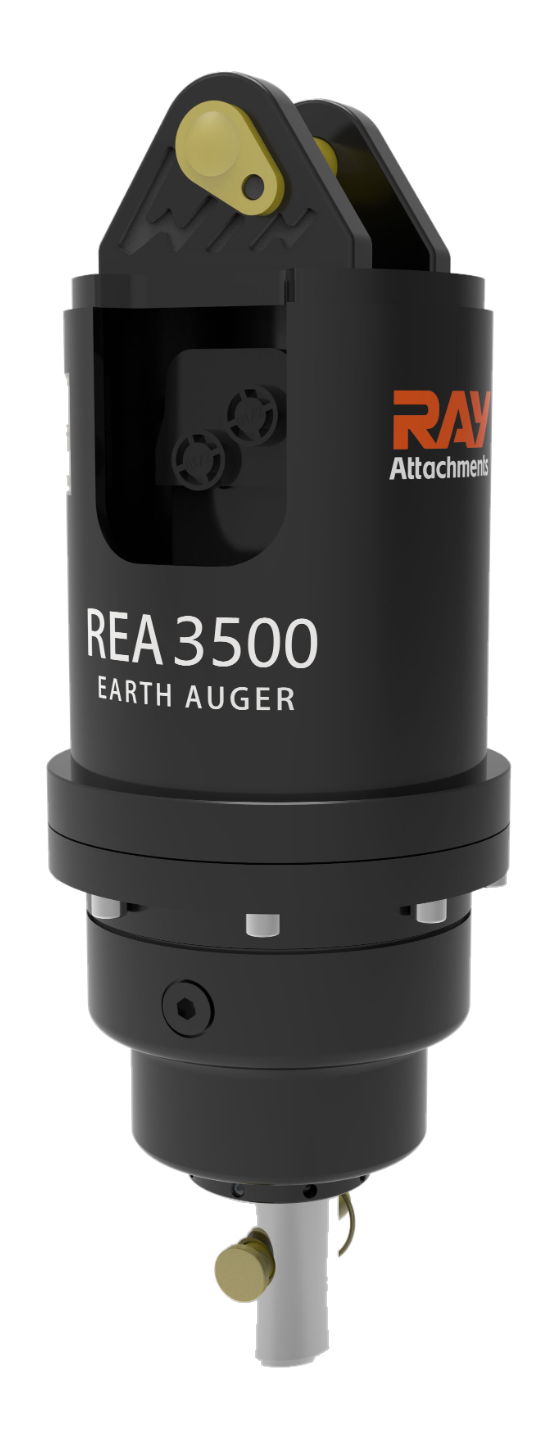

Hydraulic drive head shown without auger and mounting bracket.
Configured as one working system
A matched solution from hydraulic drive to ground tool.
Reliable drilling starts with the correct relationship between the carrier, hydraulic drive, mounting interface and auger. RAY reviews these elements together to support a practical, application-ready configuration.
01
Hydraulic compatibilityPressure and oil-flow requirements are reviewed against the carrier’s auxiliary hydraulic circuit.
02
Machine-specific connectionMounting solutions can be prepared for excavators, skid steers and telescopic handlers.
03
Ground-tool selectionAuger diameter, series and extension length are selected according to soil and hole requirements.
04
Pre-sale technical reviewMachine data and application details can be checked before quotation and production confirmation.
REA light range
Select the drive that matches your machine.
Compare the five models shown below. Final selection should be confirmed using the carrier’s operating weight, auxiliary pressure, oil flow and the required drilling diameter.
Select model
Selected model
Request This Model

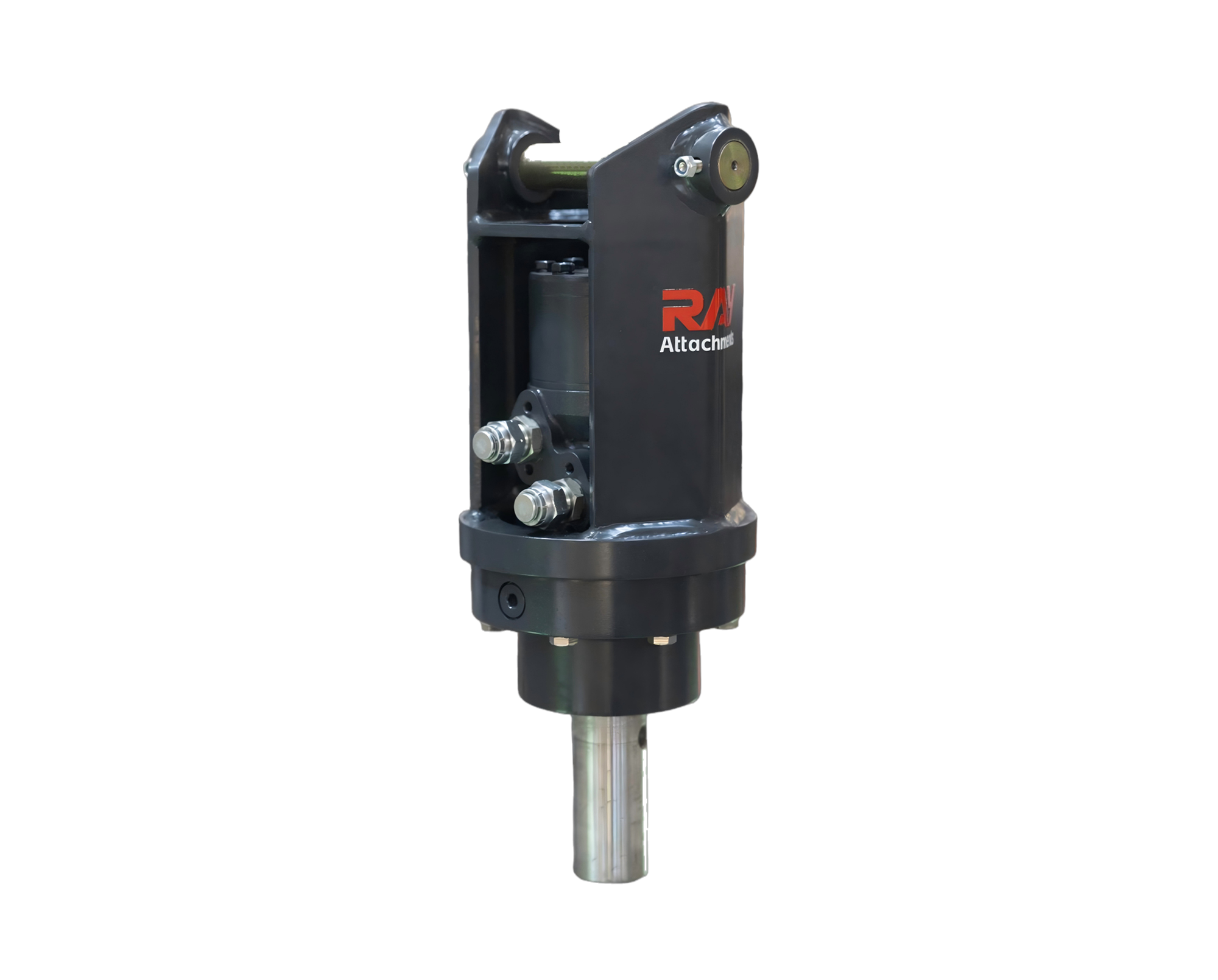

REA1000

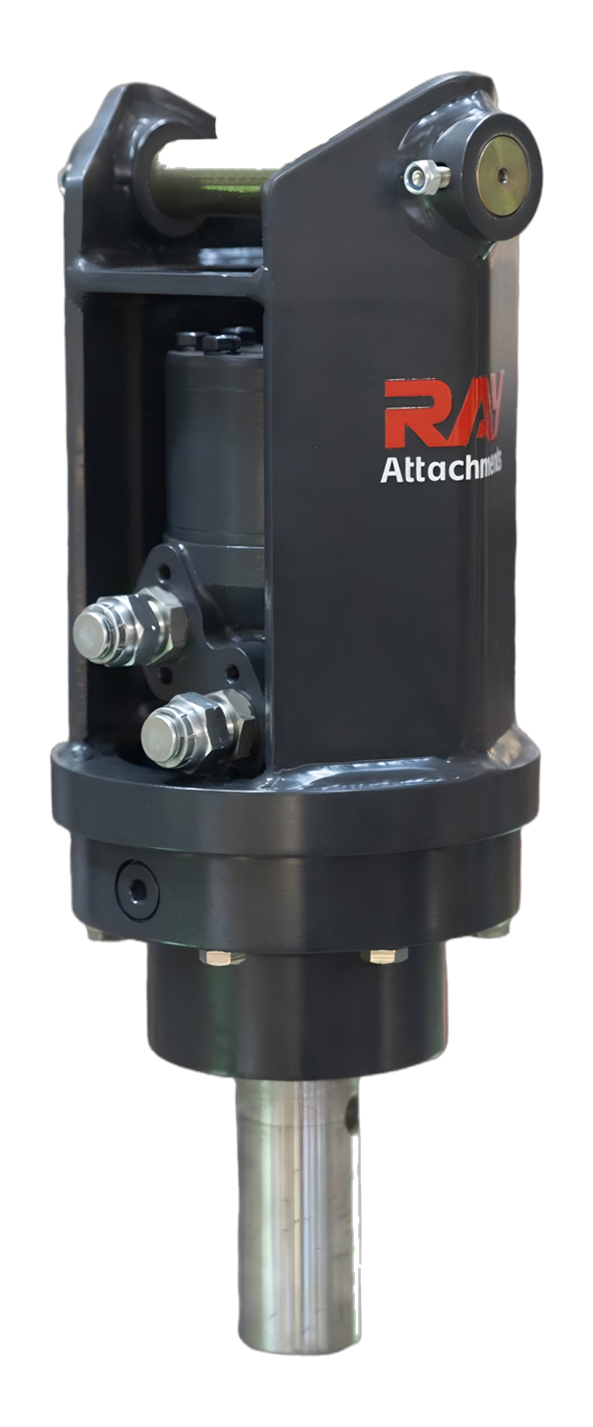

A compact hydraulic earth auger drive for mini excavators and light drilling work where low carrier weight and controlled hydraulic flow are important.
Carrier weight0.75–1 t
Torque189–950 N·m
Oil flow15–32 L/min
Auger diameter100–300 mm
Specifications are reference values. Confirm machine compatibility before ordering.
Technical comparison
REA1000–REA4500 specifications.
The following table compares the five light-range drive units featured on this page. Contact RAY for selection support where carrier data or ground conditions require further review.

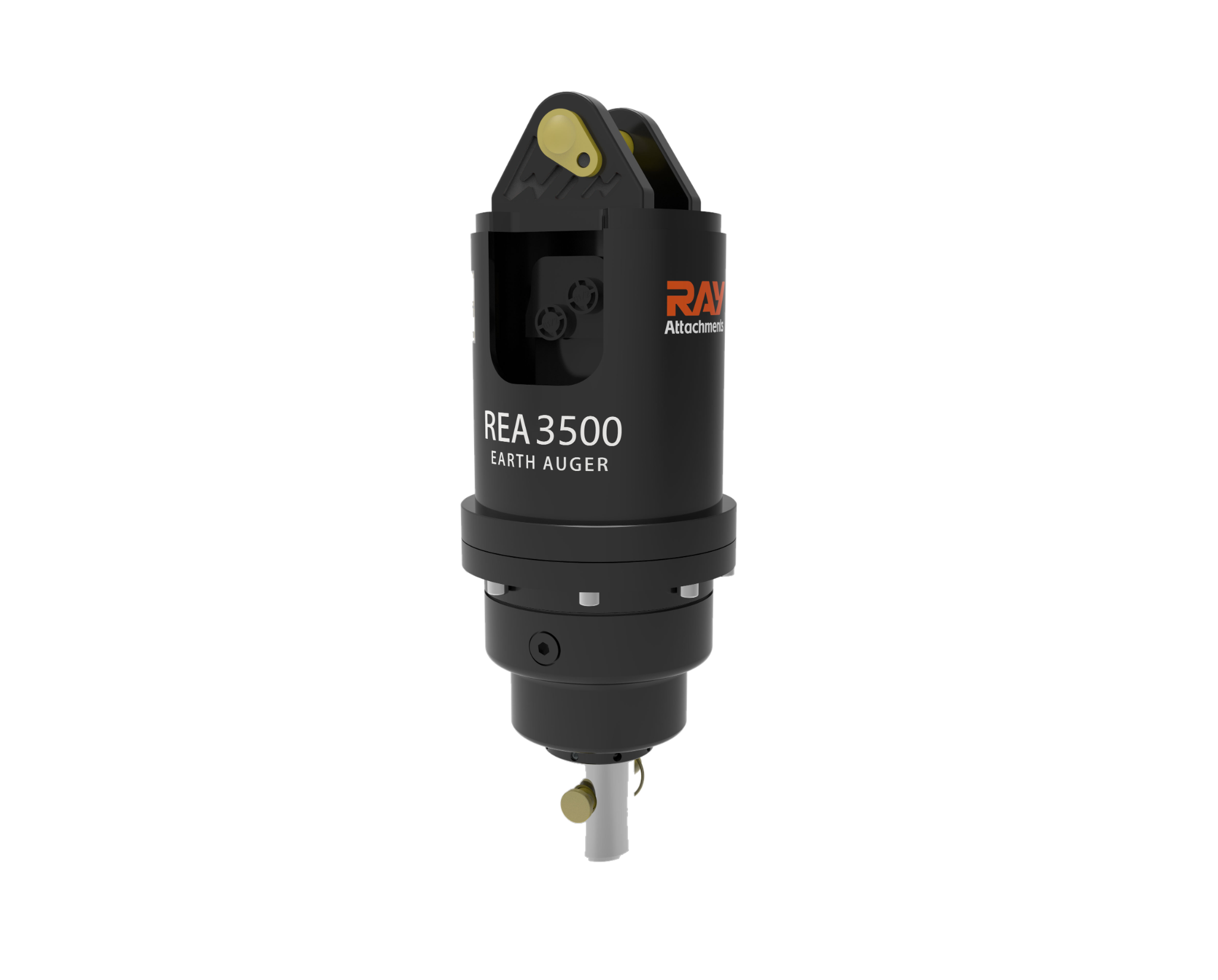

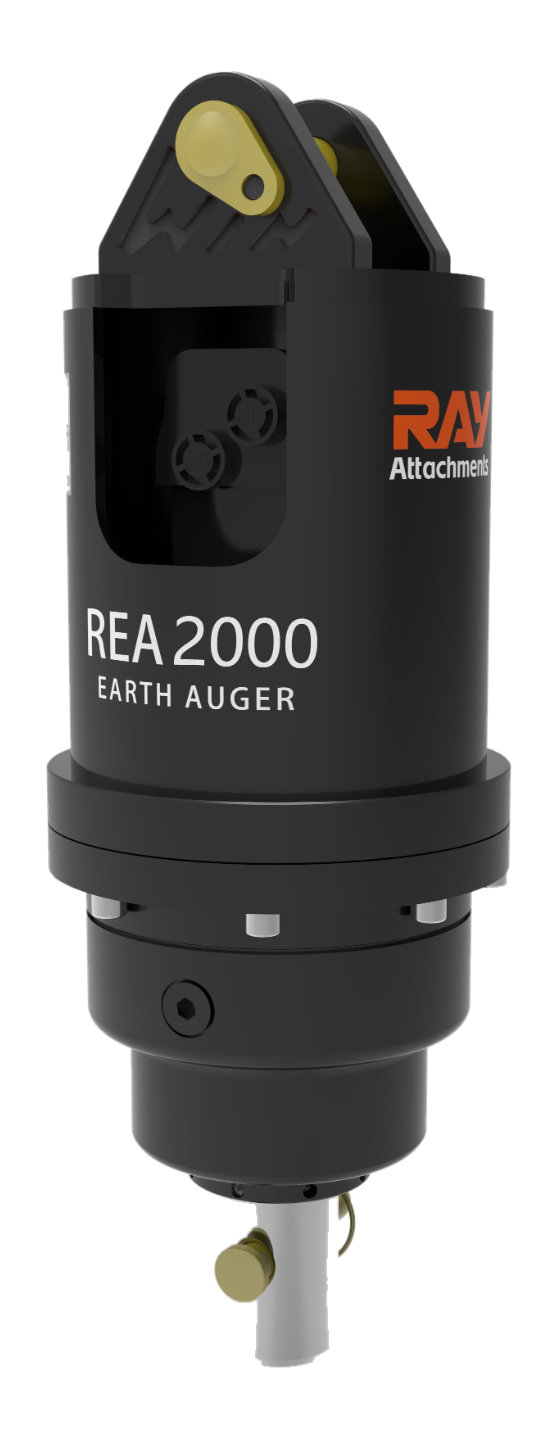

| Specification | REA1000 | REA2000 | REA2500 | REA3500 | REA4500 |
|---|---|---|---|---|---|
| Carrier weight | 0.75–1 t | 1–2.5 t | 1.5–3 t | 2.5–4.5 t | 3–5 t |
| Working pressure | 30–150 bar | 70–205 bar | 70–205 bar | 80–240 bar | 80–240 bar |
| Working oil flow | 15–32 L/min | 23–53 L/min | 30–61 L/min | 30–68 L/min | 38–76 L/min |
| Torque | 189–950 N·m | 638–1871 N·m | 830–2432 N·m | 1205–3614 N·m | 1500–4499 N·m |
| Rotary speed | 38–81 rpm | 40–92 rpm | 40–82 rpm | 32–72 rpm | 32–64 rpm |
| Hydraulic hose | 1/2 in | 1/2 in | 1/2 in | 1/2 in | 1/2 in |
| Output shaft | Ø50 mm | Ø65 mm | Ø65 mm | Ø65 mm | Ø65 mm |
| Unit weight | 35 kg | 54 kg | 54 kg | 71 kg | 71 kg |
| Unit height | 507 mm | 595 mm | 595 mm | 700 mm | 700 mm |
| Auger series | S2 | S4 | S4 | S4 | S4 |
| Standard auger length | 900 mm | 1200 mm | 1200 mm | 1200 mm | 1200 mm |
| Auger diameter range | 100–300 mm | 100–400 mm | 100–500 mm | 100–750 mm | 100–900 mm |
Values are based on the published RAY REA light-range specification table.
Ask for a Technical Match
Machine compatibility
One drilling system. Multiple carrier types.

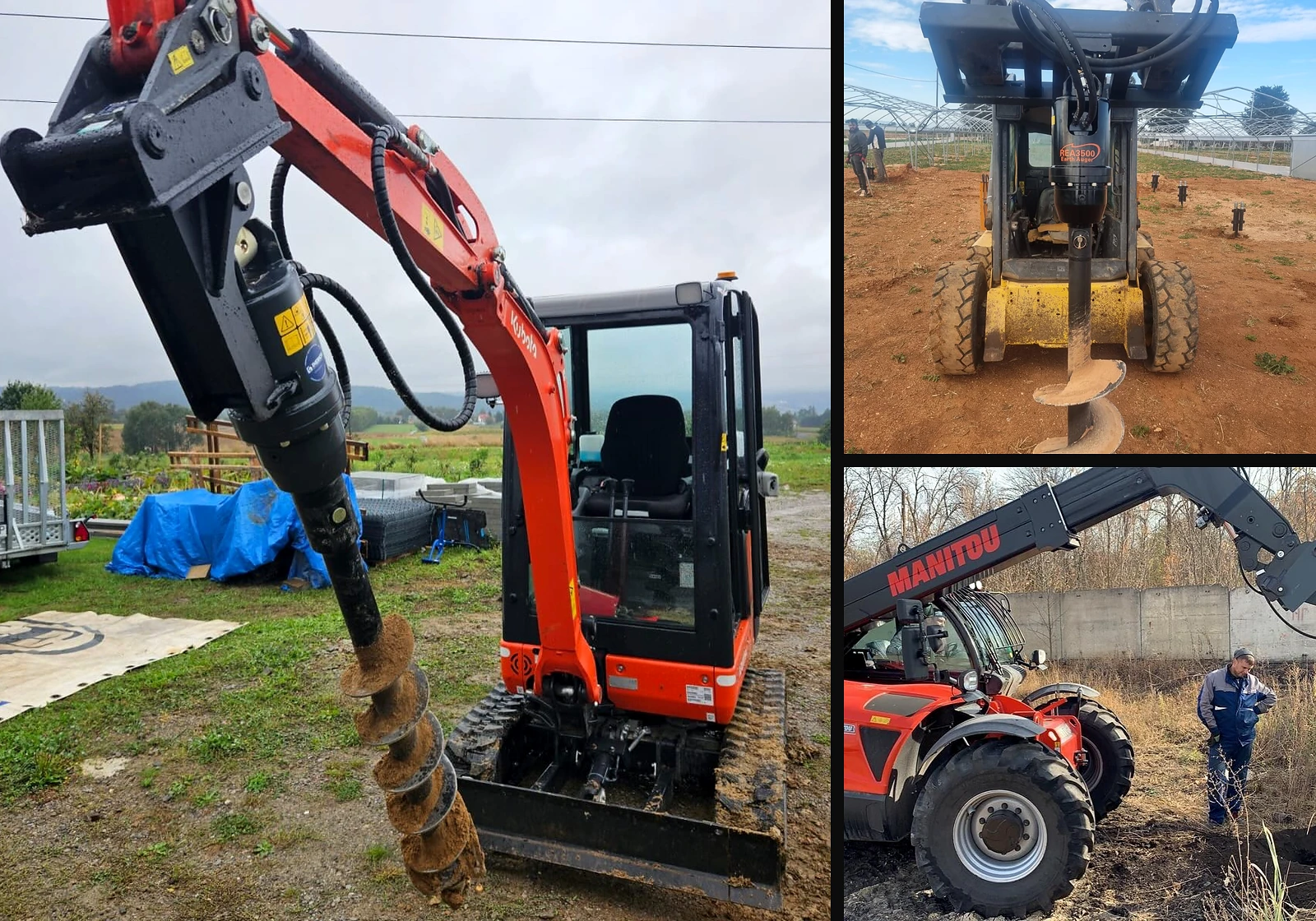

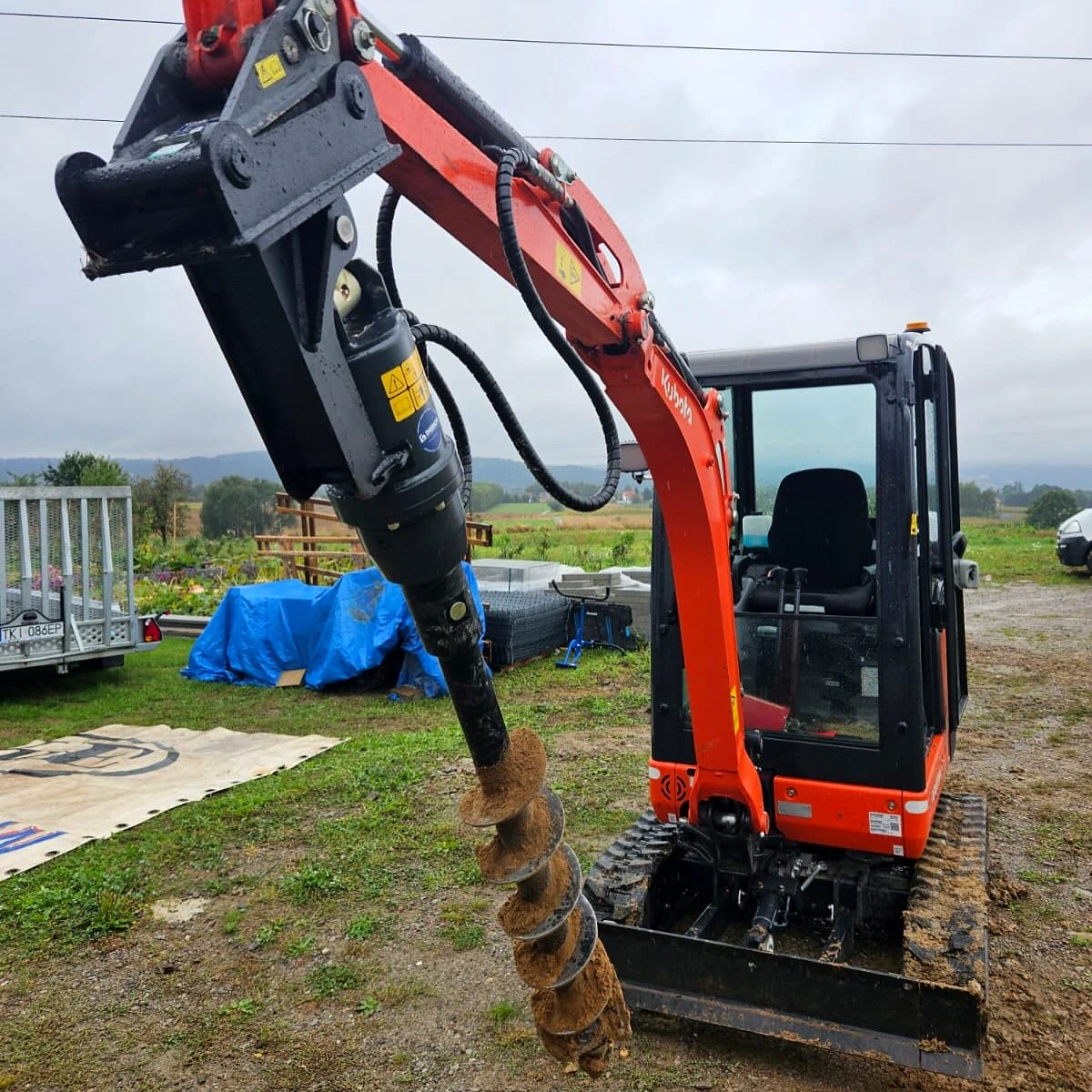

RAY earth augers can be configured for compact excavators, skid steer loaders and telescopic handlers, supporting work across construction, landscaping and agriculture.

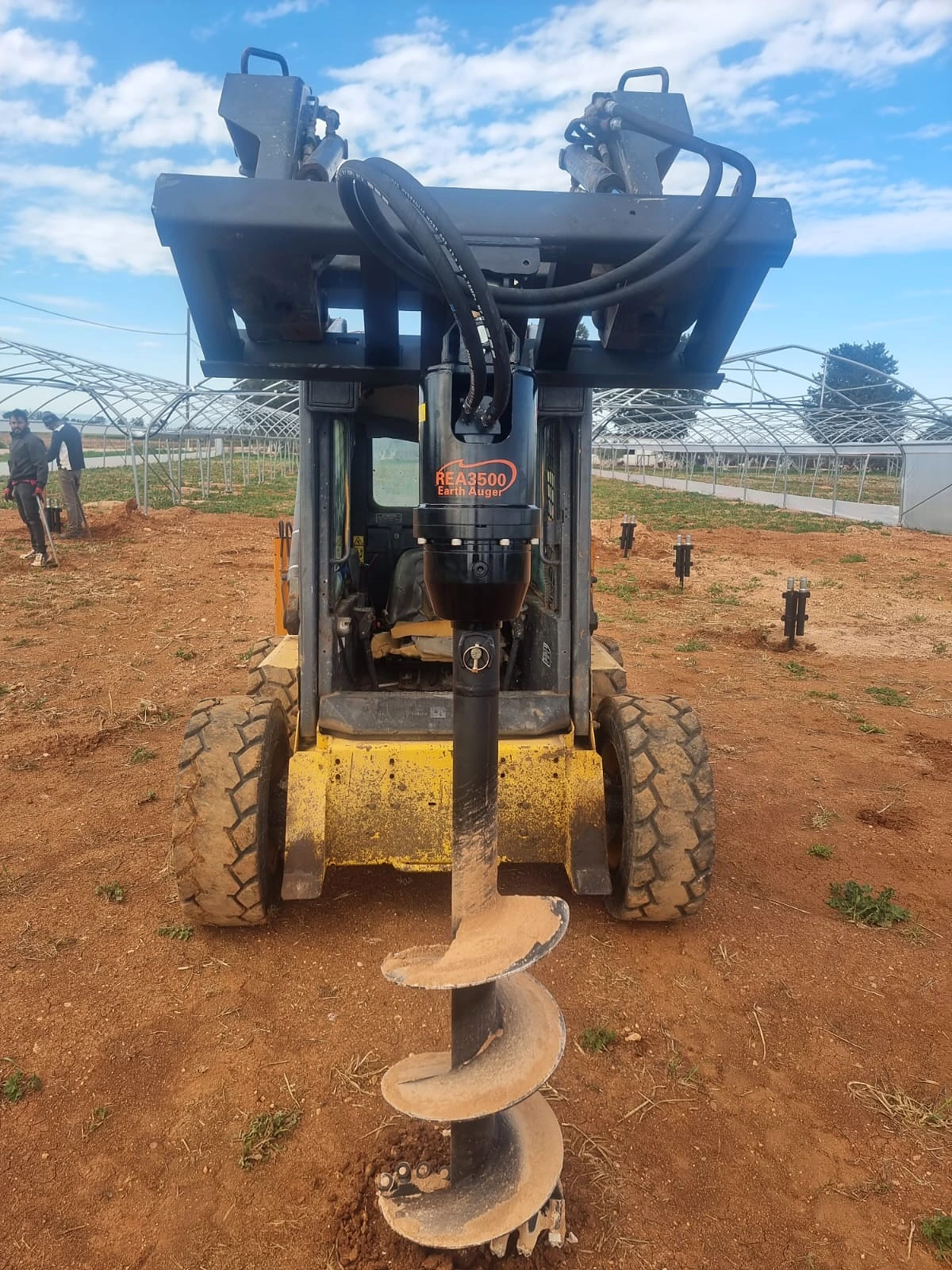

Skid steer loader
Fast positioning for repetitive holes

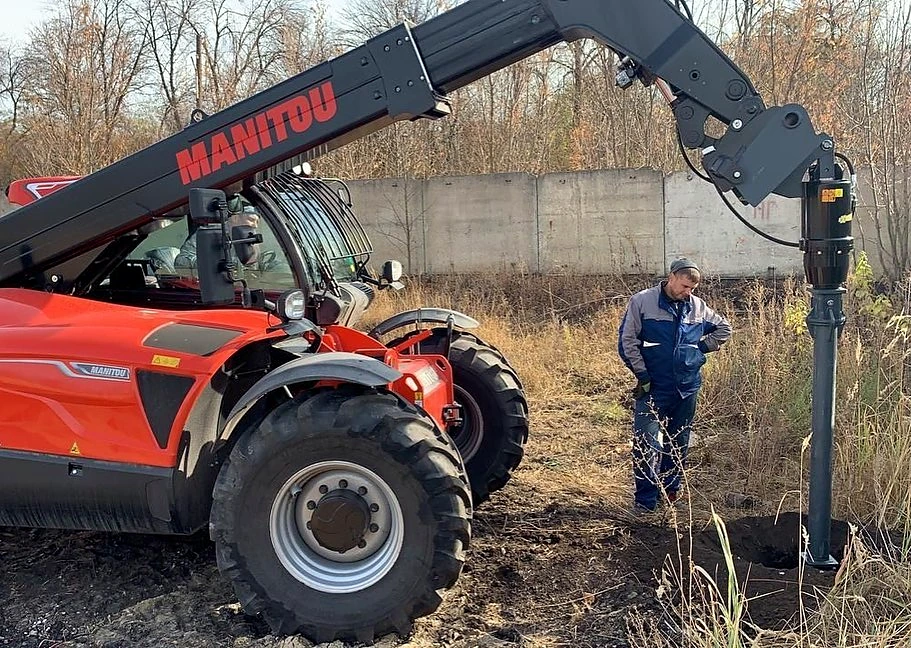

Telehandler
Reach and stability on open sites
Typical applications
Configured around the hole your project needs.
Auger diameter, ground tool and extension length can be selected according to soil condition, drilling depth and application requirements.
Fencing & posts
Holes for fence posts, signs, gates and boundary structures.
Tree planting
Ground preparation for landscaping, orchards and nurseries.
Light foundations
Drilling for selected footings and site structures.
Agriculture
Farm infrastructure, planting and land improvement work.
Utility work
Drilling for poles, markers and selected civil tasks.
Technical selection
Drive head, bracket, auger and carrier must work together.
Hydraulic pressure and flow determine how the drive operates, while torque, rotary speed, auger diameter and ground condition influence the drilling result. Accurate machine data makes selection faster and reduces compatibility risk.
Hydraulic matchingConfirm pressure, oil flow and hose requirements against the carrier.
Output shaft selectionMatch the drive output to the corresponding auger series and connection.
Mounting interfacePrepare the suitable bracket or frame for the intended machine category.
Ground tool choiceSelect a ground tool suitable for the actual soil and drilling conditions.
Ø50 / Ø65Output shaft options in the featured range
S2 / S4Compatible auger series shown in the table
