Crossover Hydraulic Earth Auger Drive

REA2500

A crossover drive between light general-purpose work and higher-demand drilling.

Suitable where customers have outgrown the light range but do not require the highest featured capacity.

ModelREA2500

Range position: Crossover model
Recommended carrier: 1.5–3 t
Torque range: 830–2432 N·m
Recommended oil flow: 30–61 L/min
Featured diameter range: 100–500 mm

Published values support initial comparison. Final selection depends on the carrier hydraulics, mounting interface, hole depth, tooling and ground conditions.

REA2500 Product Detail

Crossover capacity for mixed fleets and wider drilling requirements.

REA2500 sits between the light general-purpose and higher-torque models. It is useful for dealers serving several customer groups, provided each enquiry is reviewed against the actual carrier and ground condition.

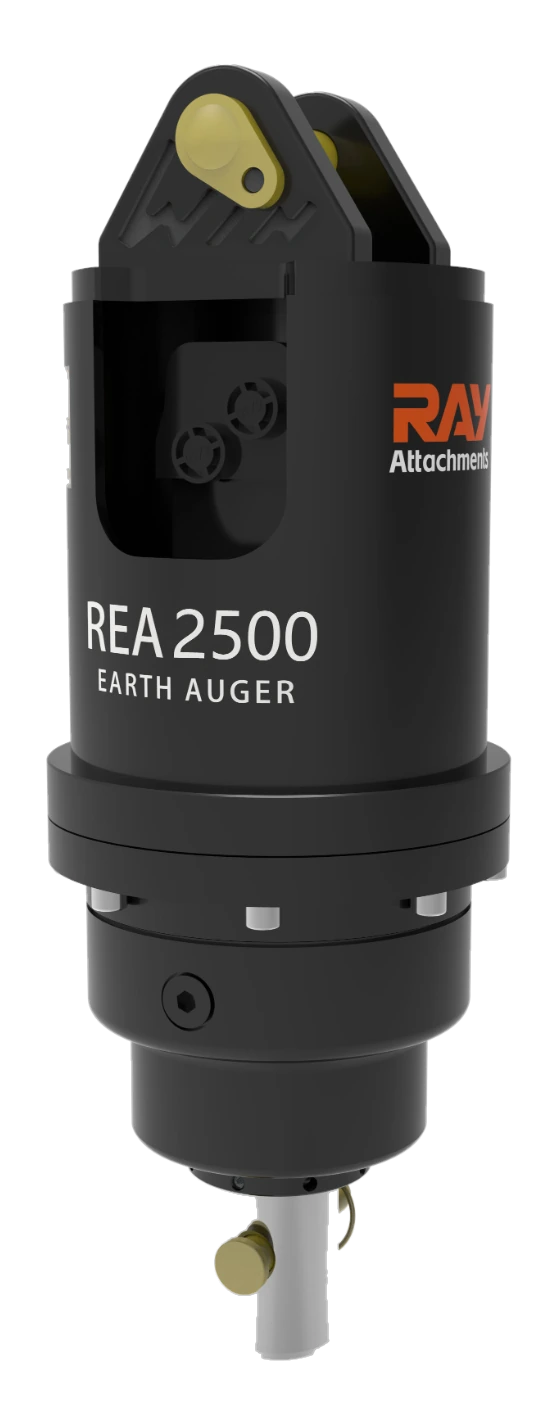

REA2500 hydraulic earth auger drive configuration view

Carrier and drive matching

Use the crossover range to solve a defined capacity gap.

The model should be selected because the application requires its hydraulic and torque window—not simply because it sits in the middle of the range.

Step-up decision

Compare hole diameter, soil resistance and duty cycle with REA2000 before moving up.

Step-down decision

Check whether REA3500 torque reserve is genuinely required for the application.

Carrier stability

Confirm the machine has suitable hydraulic capacity, mounting geometry and working stability.

Hydraulic earth auger application reference

Complete attachment package

Build one clearly documented package for mixed applications.

A crossover model is most effective when the compatible tooling and commercial scope are controlled.

Customer coverage

Construction, landscaping, agricultural and rental fleets with overlapping requirements.

Tool definition

Avoid a universal auger assumption; define pilot and teeth for the expected soil mix.

Repeat supply

Record the approved hitch, hoses, tooling, documents, packaging and branding for repeat orders.

Supply definition

Confirm the complete package before production.

The drive model is one part of the order. The approved supply reference should also define the machine interface, tooling, hoses, documentation and any agreed OEM or private-label requirement.

Machine Interface

Hitch, pins, coupler information and hose connection details.

Drilling Tool

Auger diameter, pilot, teeth, extension and ground direction.

Order Documents

Approved specification, manuals, packing list and repeat-order reference.

OEM Scope

Logo, colour, nameplate, packaging and files confirmed by project.

Specification

REA2500 initial selection data

Use this information to compare models, then send the actual machine and application data for final review.

Technical Resources

Product categoryCrossover Hydraulic Earth Auger Drive

ModelREA2500

Range positionCrossover model

Recommended carrier weight1.5–3 t

Torque range830–2432 N·m

Recommended oil flow30–61 L/min

Featured diameter range100–500 mm

Final confirmationCarrier, pressure, flow, hitch, hole depth, auger and ground condition

Product inquiry

Ask about REA2500

Share the carrier model, pressure, flow, mounting details, hole diameter, depth and ground conditions. The prepared email can also include quantity, market and OEM requirements.
