Compact Hydraulic Earth Auger Drive

REA1000

Compact hydraulic earth auger drive for mini excavators and access-sensitive drilling work.

A focused entry model for projects where machine size, auxiliary flow and working access define the attachment package.

ModelREA1000

Range position: Compact-range entry
Recommended carrier: 0.75–1 t
Torque range: 189–950 N·m
Recommended oil flow: 15–32 L/min
Featured diameter range: 100–300 mm

Published values support initial comparison. Final selection depends on the carrier hydraulics, mounting interface, hole depth, tooling and ground conditions.

REA1000 Product Detail

Compact drilling starts with accurate carrier matching.

REA1000 is positioned for small carriers and lighter drilling tasks. The final package should be selected from the actual hydraulic output, mounting interface, hole size, depth and ground condition rather than carrier weight alone.

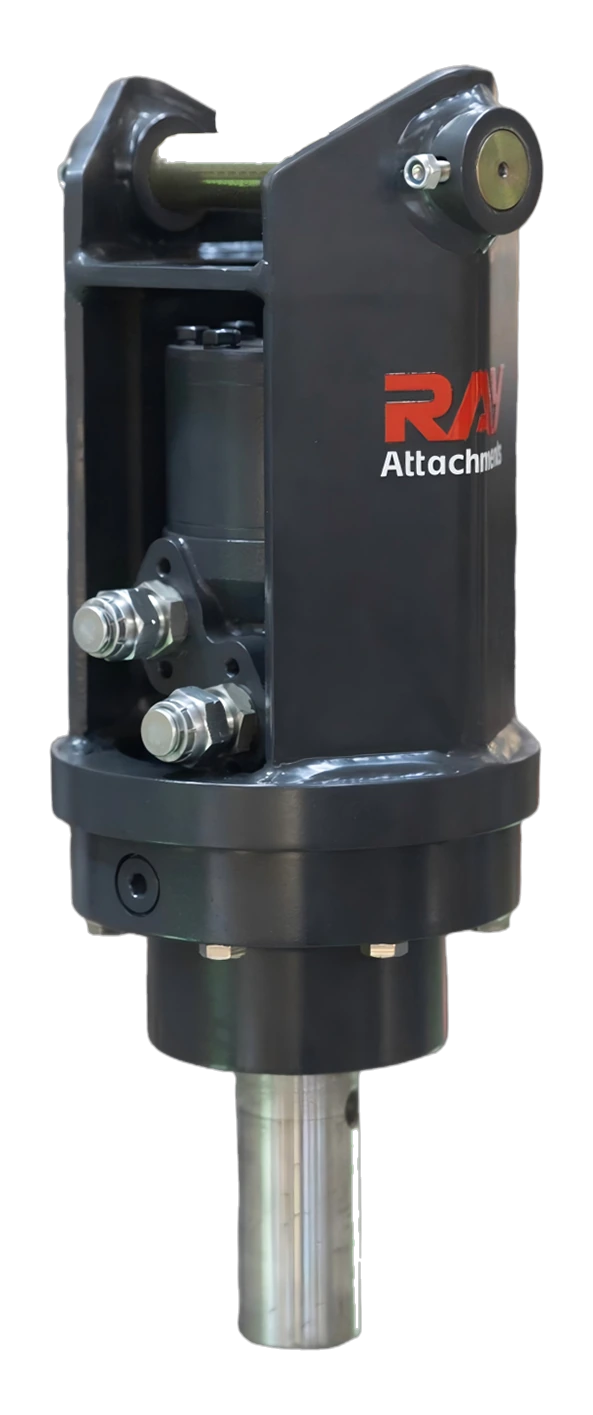

REA1000 hydraulic earth auger drive configuration view

Carrier and drive matching

Match the compact carrier before choosing the auger.

The smaller working envelope makes hydraulic and mounting confirmation especially important.

Hydraulic window

Confirm that the available auxiliary flow and working pressure suit the drive before supply.

Mounting interface

Define the hitch, pin dimensions or coupler information for the actual mini excavator.

Hole requirement

Use the featured diameter range as an initial guide and review depth and soil resistance separately.

Hydraulic earth auger application reference

Complete attachment package

Configure the light-duty package around the real task.

A practical compact package combines the drive with the correct tooling and installation details.

Typical applications

Light fencing, planting, estate maintenance and selected utility work.

Tool selection

Confirm auger diameter, pilot and teeth according to soil type and expected working cycle.

Supply scope

Agree hoses, hitch, documentation, packaging and approved branding requirements before production.

Supply definition

Confirm the complete package before production.

The drive model is one part of the order. The approved supply reference should also define the machine interface, tooling, hoses, documentation and any agreed OEM or private-label requirement.

Machine Interface

Hitch, pins, coupler information and hose connection details.

Drilling Tool

Auger diameter, pilot, teeth, extension and ground direction.

Order Documents

Approved specification, manuals, packing list and repeat-order reference.

OEM Scope

Logo, colour, nameplate, packaging and files confirmed by project.

Specification

REA1000 initial selection data

Use this information to compare models, then send the actual machine and application data for final review.

Technical Resources

Product categoryCompact Hydraulic Earth Auger Drive

ModelREA1000

Range positionCompact-range entry

Recommended carrier weight0.75–1 t

Torque range189–950 N·m

Recommended oil flow15–32 L/min

Featured diameter range100–300 mm

Final confirmationCarrier, pressure, flow, hitch, hole depth, auger and ground condition

Product inquiry

Ask about REA1000

Share the carrier model, pressure, flow, mounting details, hole diameter, depth and ground conditions. The prepared email can also include quantity, market and OEM requirements.
