Higher-Torque Hydraulic Earth Auger Drive

REA3500

Higher torque reserve for demanding compact and mid-range carrier applications.

Positioned for larger fencing, agricultural drilling, foundation preparation and tougher mixed-ground enquiries.

ModelREA3500

Range position: Higher-torque compact range
Recommended carrier: 2.5–4.5 t
Torque range: 1205–3614 N·m
Recommended oil flow: 30–68 L/min
Featured diameter range: 100–750 mm

Published values support initial comparison. Final selection depends on the carrier hydraulics, mounting interface, hole depth, tooling and ground conditions.

REA3500 Product Detail

Additional torque reserve for applications that exceed the light range.

REA3500 is intended for higher-demand compact and mid-range carriers. The larger working window requires a more disciplined review of carrier hydraulics, stability, mounting, auger choice and ground resistance.

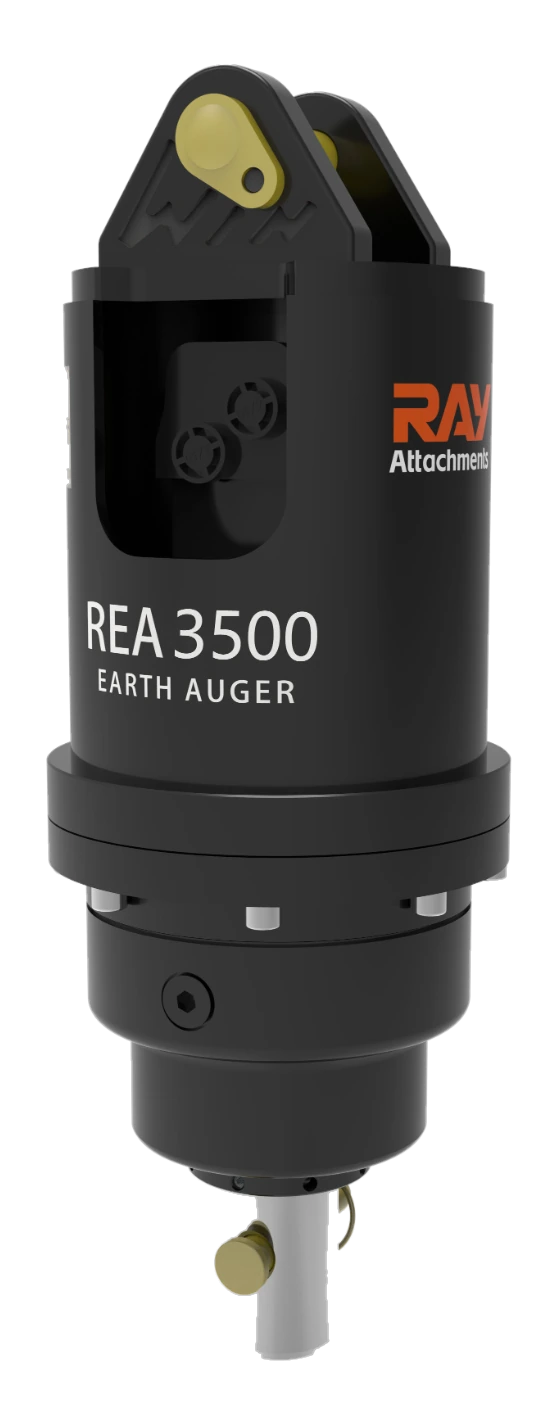

REA3500 hydraulic earth auger drive configuration view

Carrier and drive matching

Confirm that the carrier can use the additional capacity.

Higher torque only adds value when the machine and attachment interface are suitable for the complete system.

Hydraulic capacity

Verify flow, pressure and auxiliary circuit limits before confirming the model.

Machine stability

Review carrier weight, working posture and mounting geometry for the intended drilling diameter.

Duty requirement

Use the additional reserve for a defined ground or hole requirement, not as a default upgrade.

Hydraulic earth auger application reference

Complete attachment package

Specify tooling and support for more demanding work.

Larger holes and tougher conditions increase the importance of the full attachment package.

Application direction

Larger fencing, agricultural work, foundation preparation and demanding general construction.

Ground engagement

Select pilot and teeth according to soil, clay, compacted ground or other confirmed conditions.

Project documentation

Agree the mounting, hoses, tool list, manuals, labels and packaging before repeat supply.

Supply definition

Confirm the complete package before production.

The drive model is one part of the order. The approved supply reference should also define the machine interface, tooling, hoses, documentation and any agreed OEM or private-label requirement.

Machine Interface

Hitch, pins, coupler information and hose connection details.

Drilling Tool

Auger diameter, pilot, teeth, extension and ground direction.

Order Documents

Approved specification, manuals, packing list and repeat-order reference.

OEM Scope

Logo, colour, nameplate, packaging and files confirmed by project.

Specification

REA3500 initial selection data

Use this information to compare models, then send the actual machine and application data for final review.

Technical Resources

Product categoryHigher-Torque Hydraulic Earth Auger Drive

ModelREA3500

Range positionHigher-torque compact range

Recommended carrier weight2.5–4.5 t

Torque range1205–3614 N·m

Recommended oil flow30–68 L/min

Featured diameter range100–750 mm

Final confirmationCarrier, pressure, flow, hitch, hole depth, auger and ground condition

Product inquiry

Ask about REA3500

Share the carrier model, pressure, flow, mounting details, hole diameter, depth and ground conditions. The prepared email can also include quantity, market and OEM requirements.
