High-Capacity Hydraulic Earth Auger Drive

REA4500

High-capacity drive for larger holes and more demanding drilling systems.

Intended for applications that justify a full review of carrier, mounting, hydraulics, tooling and ground conditions.

ModelREA4500

Range position: Featured high-capacity range
Recommended carrier: 3–5 t
Torque range: 1500–4499 N·m
Recommended oil flow: 38–76 L/min
Featured diameter range: 100–900 mm

Published values support initial comparison. Final selection depends on the carrier hydraulics, mounting interface, hole depth, tooling and ground conditions.

REA4500 Product Detail

High-capacity selection begins with the complete drilling system.

REA4500 represents the featured upper end of the current REA range. It should be selected only after the machine, hydraulic circuit, mounting arrangement, tool diameter, depth and ground conditions have been reviewed together.

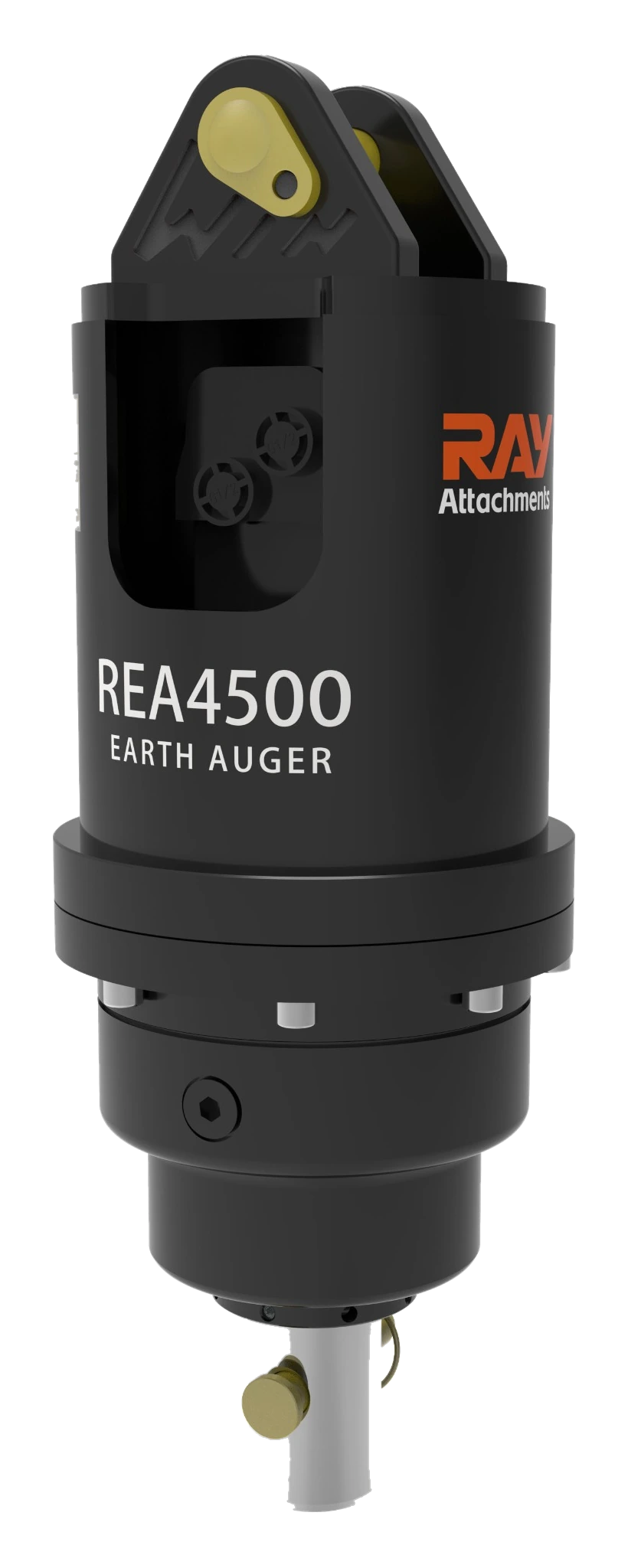

REA4500 hydraulic earth auger drive configuration view

Carrier and drive matching

Treat the drive, carrier and auger as one working system.

The upper-range model requires more than a simple carrier-weight match.

Carrier verification

Confirm auxiliary flow, pressure, stability and mounting geometry from actual machine data.

Capacity requirement

Review the real hole diameter, depth, ground resistance and duty cycle before selection.

System boundary

Do not assume the featured maximum diameter applies to every carrier or ground condition.

Hydraulic earth auger application reference

Complete attachment package

Control every component before project or repeat supply.

Higher-capacity packages need clear technical and commercial records throughout the order process.

Application direction

Larger-diameter drilling, demanding agricultural work and selected construction preparation.

Complete tooling

Define auger, pilot, teeth, extensions, hitch and hose routing for the approved configuration.

Brand and delivery scope

Confirm documents, nameplate, colour, packaging and private-label requirements by project.

Supply definition

Confirm the complete package before production.

The drive model is one part of the order. The approved supply reference should also define the machine interface, tooling, hoses, documentation and any agreed OEM or private-label requirement.

Machine Interface

Hitch, pins, coupler information and hose connection details.

Drilling Tool

Auger diameter, pilot, teeth, extension and ground direction.

Order Documents

Approved specification, manuals, packing list and repeat-order reference.

OEM Scope

Logo, colour, nameplate, packaging and files confirmed by project.

Specification

REA4500 initial selection data

Use this information to compare models, then send the actual machine and application data for final review.

Technical Resources

Product categoryHigh-Capacity Hydraulic Earth Auger Drive

ModelREA4500

Range positionFeatured high-capacity range

Recommended carrier weight3–5 t

Torque range1500–4499 N·m

Recommended oil flow38–76 L/min

Featured diameter range100–900 mm

Final confirmationCarrier, pressure, flow, hitch, hole depth, auger and ground condition

Product inquiry

Ask about REA4500

Share the carrier model, pressure, flow, mounting details, hole diameter, depth and ground conditions. The prepared email can also include quantity, market and OEM requirements.
